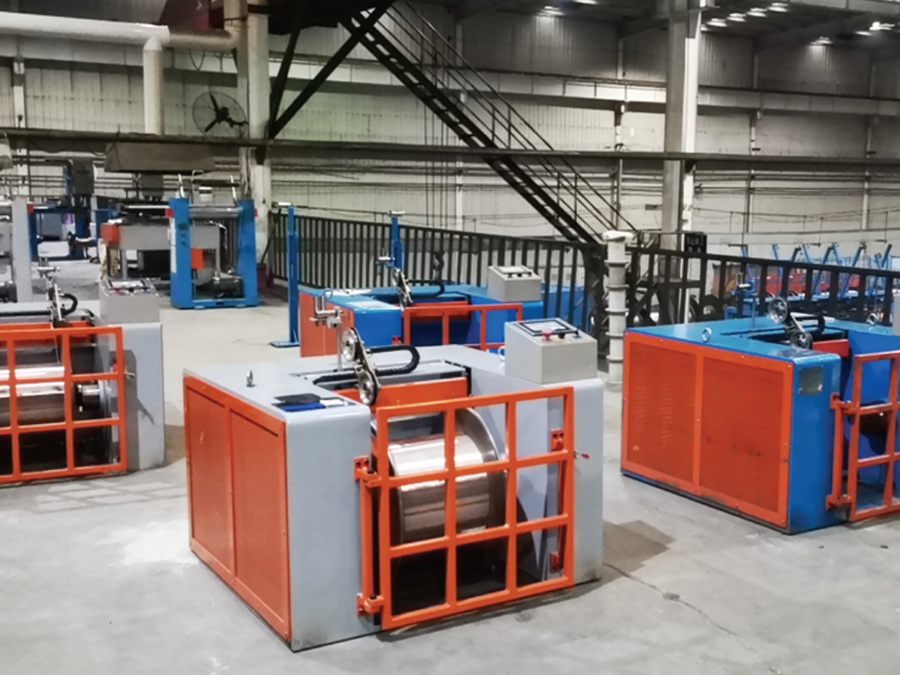

Large Wire Tin-Plating and Multi-Head Drawing Tin-Plating Machine Series
Use: It is mainly used for tin-plating of single large-scale annealing/multi-head drawing annealing soft copper wire
Keywords：
Category:
Details
■ Advantages of the machine：
1.The tin-plating furnace and tin tripod of this equipment are integrally cast, and the temperature in the furnace is uniform, with a temperature difference of +1℃ at four corners.
2.The heating mode is heating by heating tube, which is convenient for maintenance and simple for operation.
3.The take-up is controlled by special torque motor and frequency converter, which can accurately control the take-up tension.
4.The cable laying adopts servo motor+precision screw sliding table cable laying, and the cable laying speed is accelerated and decelerated synchronously with the take-up, and the cable laying is neat and flat.
5.(Optional) Internet of Things function, information of multiple equipment can be integrated on multiple mobile phones or computers, and the operation of the machine, such as temperature setting, power consumption, voltage and current, line speed and power factor, can be checked at any time, so as to realize refined management and lead in the industry.
6.The products are widely used in IT communication, aerospace, military industry, medical care, locomotives, automobiles, robots, ships, 5G cloud databases and other fields.
|
Equipment Model |
FC-TX2/630 |
FC-TX4/630 |
FC-TX16/630 |
FC-TX24/630 |
FC-TX32/630 |
|
Application |
Mainly used for tinning a single large-size annealed soft copper wire |
Mainly used for tinning of multi-head parallel annealed soft copper wire |
|||
|
Inlet Dia（mm） |
φ0.85～3.0mm |
φ0.20～0.50mm |
|||
|
Max Inlet Wire No. |
2 |
4 |
16 |
24 |
32 |
|
Linear Speed |
Max: 130m/min |
Max: 250m/min |
|||
|

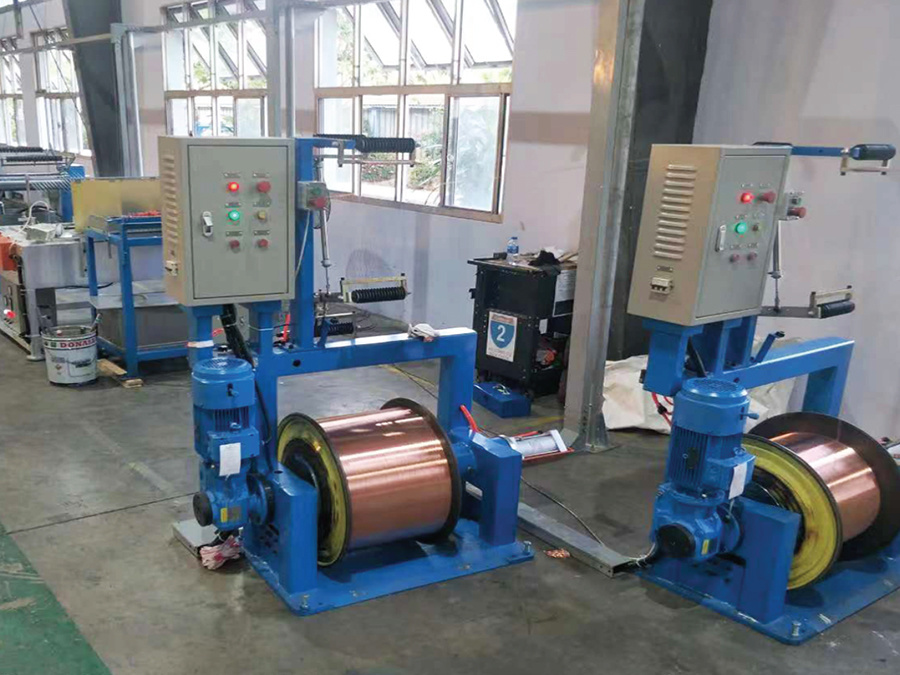

Pay-off Method |
630 Active pay-off or magnetic powder tension pay-off |
630 Multi-wire active pay-off |
|||
|
Pay-off No. |
2 |
4 |
2 |
2/3 |
4 |
|
Tinned Method |
Hot dip |
||||
|
Capstan Control Method |
Motor+invertor |
||||
|
Total Power |
32KW |
35KW |
38KW |
65KW |
68KW |
|
Take-up Control |
Torque motor + torque controller or inverter control |
||||
|
Take Up Operation Mode |
Button operation or touch screen operation |
||||
|
Take-up Bobbin Size |
500/630 |
630 |
|||
|
Traverse Control Method |
Bearing-type polished rod cable device cable or servo motor + precision screw cable |
||||
|
Take-up No. |
2 |
4 |
2 |
2/3 |
4 |
|
Dimension (mm) |
19000L*2500W*1600H |
22000L*2500W*1600H |
15000L*2500W*1600H |
19500L*2500W*1600H |
21000L*2500W*1600H |
|
Some Customers |
Xinhai Gaodao, Huatong Cable, Mingda Cable, Zhongbang Cable, Baosheng Precision, Jiangyang Special, Huaxin Precision, Xingxuande, Bazhou Guoyuan, Zhengzhou Yifang, Vietnam CADZVZ, Ningbo Shimao, Thailand Sword, etc. |
||||
