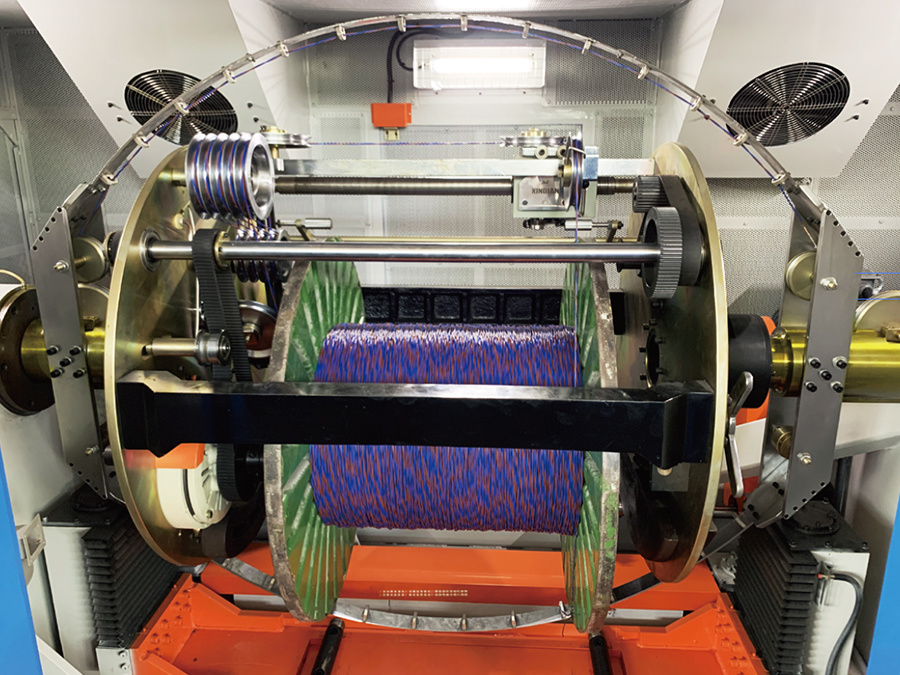

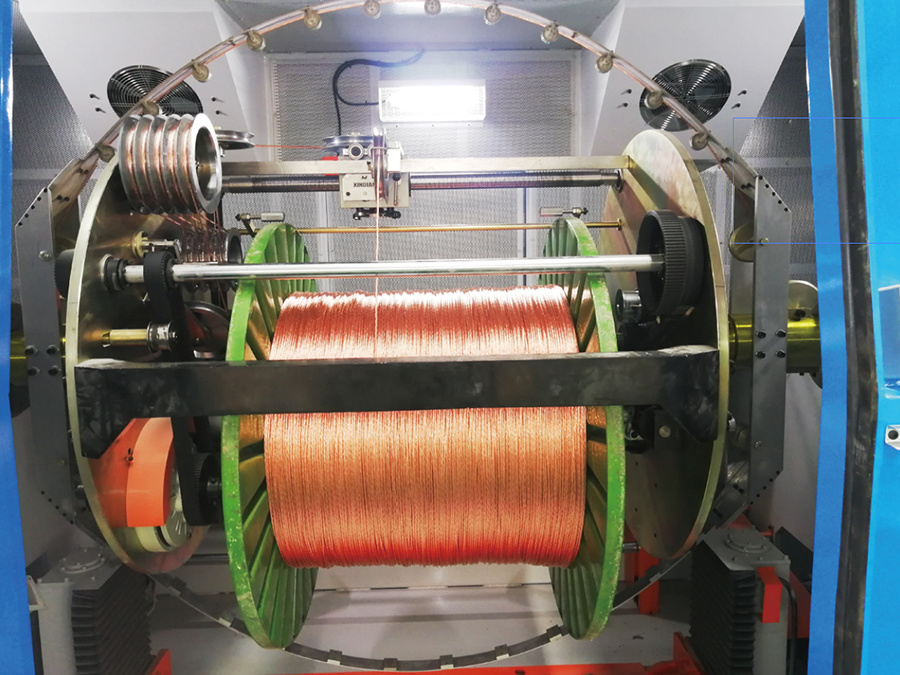

B-Type Large Wire Strander and Pair Strander

B-Type Large Wire Strander and Pair Strander

Use: It is applicable for twisting more than seven strands of bare BVR and RVV copper wires, tin-plated wires, alloy aluminum wires and other conductors, and cabling the core wires of power supply wires.

Keywords：

Category:

Tel：

Details

■ The machine was put into production in Jiangsu with Japanese technology
■ Advantages of the machine：

This machine is a new product developed by our company, which completely replaces the products produced by Model 400 tube strander, especially the products of 1+6 conductor regular stranding and power cord core cabling. The output is 4.5 times that of Model 400 tube strander, and it has the advantages of energy saving, small floor space and low noise.

Equipment Model	FC-1000B	FC-1250B	FC-1600B
Usage	Apply for the twisting of above seven pcs of bare copper wires, tinned wires, alloy aluminium wires etc of BVR and RVV), double twisting for core wires
Single Wire Dia (mm)	Φ0.85~2.14	Φ1.0~2.52	Φ1.0~2.52
Stranding Section Area（mm²）	4.0～25.0	6.0～35.0	6.0～35.0
Core Wire Dia (mm)	Φ2.0～4.0	Φ3.0～6.0	Φ3.0～6.0
Twisted Outer Dia（mm）	Φ4.0～10.0	Φ6.0～12.0	Φ6.0～12.0
Pitch(mm)	35～149（20 Classes）	41～155（20 Classes）	47～275（20 Classes）
Direction Of Lay	Free option to S Z
Take-up Size(mm)	Φ1000×Φ80×750	Φ1250×Φ80×950	Φ1600×Φ80×1180
Max Speed (rpm)	1000(2000TPM)	800(1600TPM)	600(1200TPM)
Power	18.5KW	22KW	22KW
Tension Control Method	Touch screen+PLC+ magnetic powder clutch,ensure the constant tension from empty to full bobbin
Magnetic Powder Clutch	20kgf	20kgf	20kgf
Protection	Internal and external wire cut off automatic brake (electromagnetic brake),automatic shutdown when the meter reaches	Internal and external wire cut off automatic brake (electromagnetic brake),automatic shutdown when the meter reaches
Traversing Method	Precious traverse or screw type polish wire traverse, winding pitch and breadth are adjustable
Lifting Mode	Electric traverse rod control lifting
Dimension(mm)	3800L×2300W×2200H	4100L×2450W×2700H	4700L×2900W×3100H
Some Customers	Huasheng Electric Appliances, Guilin International, Qifan Cable Group, Yuantong Cable Group, Guangdong Zhujiang Cable, CHINT Cable Group, Delixi Cable, Duobao Cable, Mingchao Cable, Jiangxi Pacific, Chongqing Gepai, Jiangxi Hanglan, Tianjin Jinshan, Guoyuan Wire, Zhengzhou Hengtian, etc.
